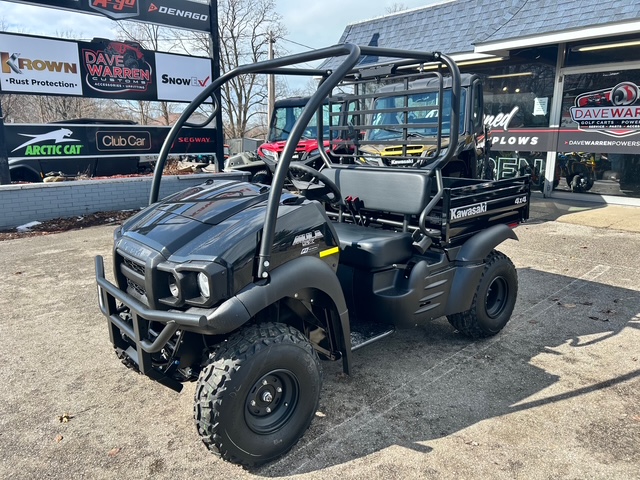

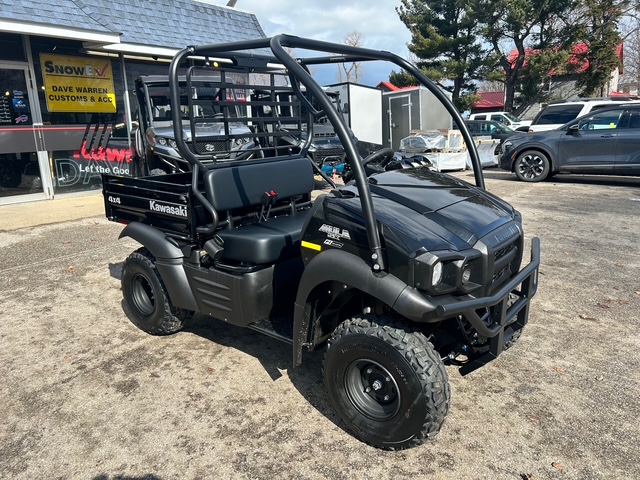

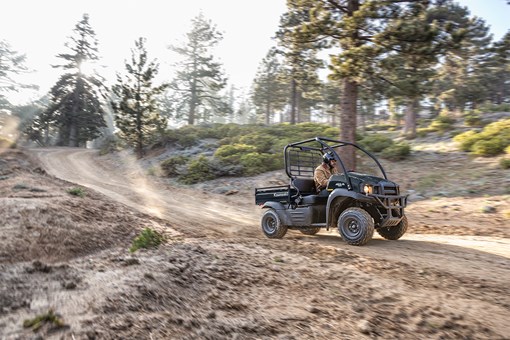

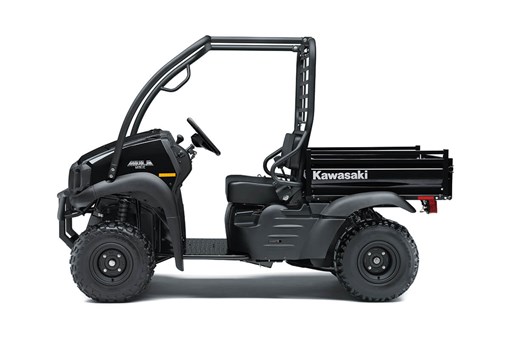

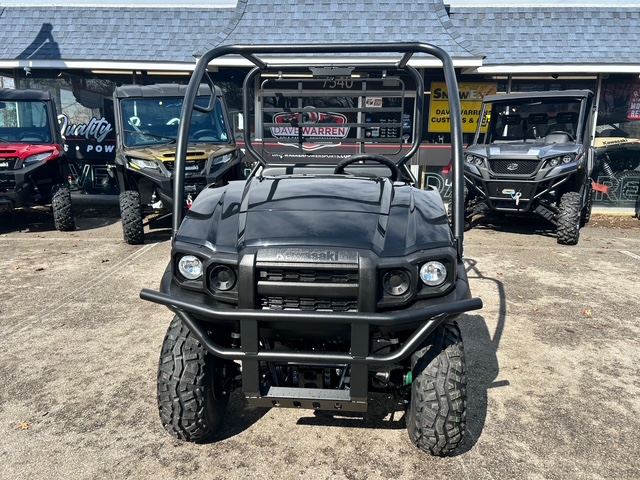

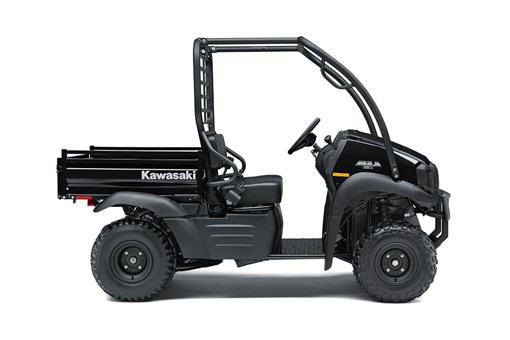

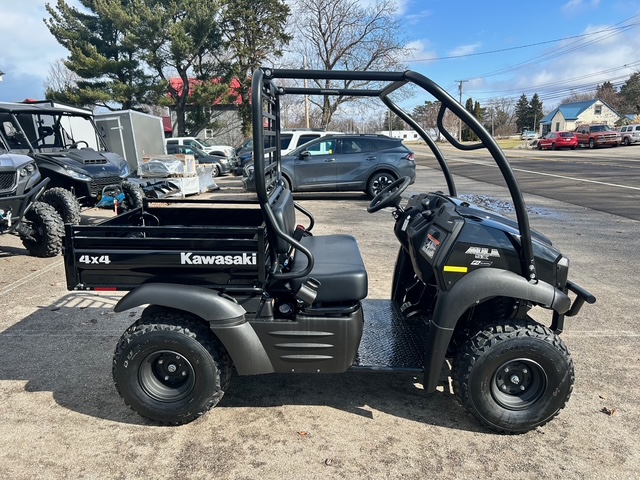

OVERVIEW

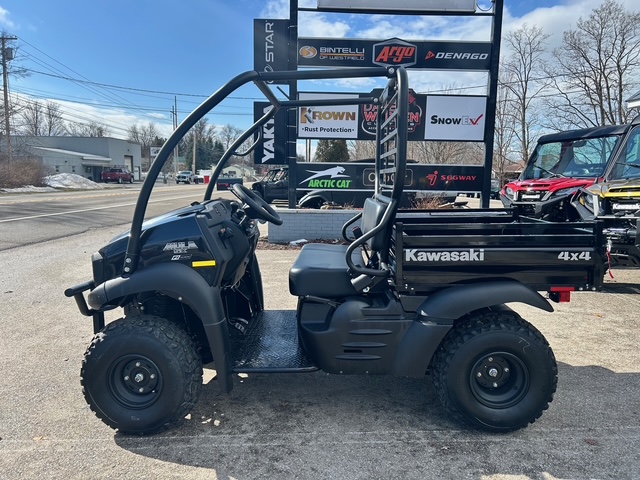

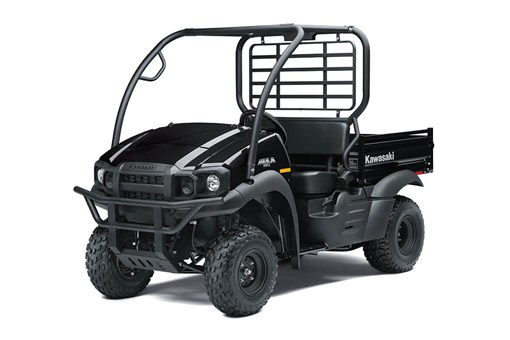

Styled in the image of its full-size MULE™ PRO siblings, the MULE SX™ family of side x sides packs plenty of stout muscle into a compact and agile 2-passenger vehicle. Handle a wide variety of tasks with the ability to tread lightly and maneuver in tight areasand fit in the bed of a full-size pickup truck.
FEATURING:
401cc 4-STROKE ENGINE
COMPACT SIZE AND TIGHT TURNING RADIUS

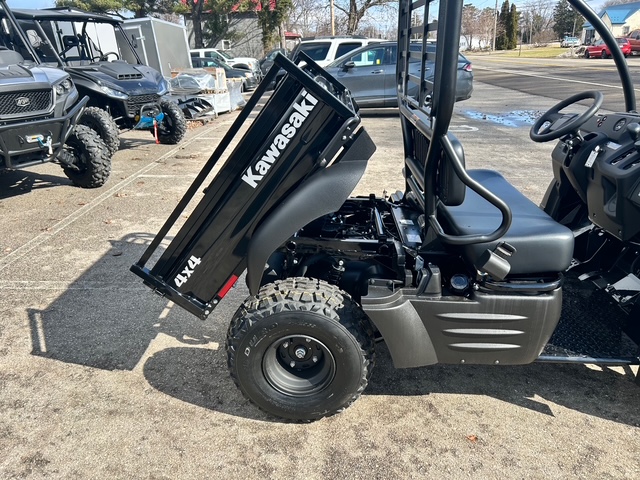

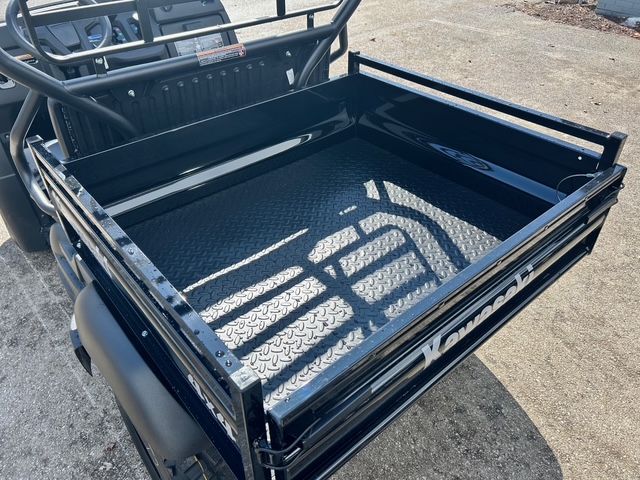

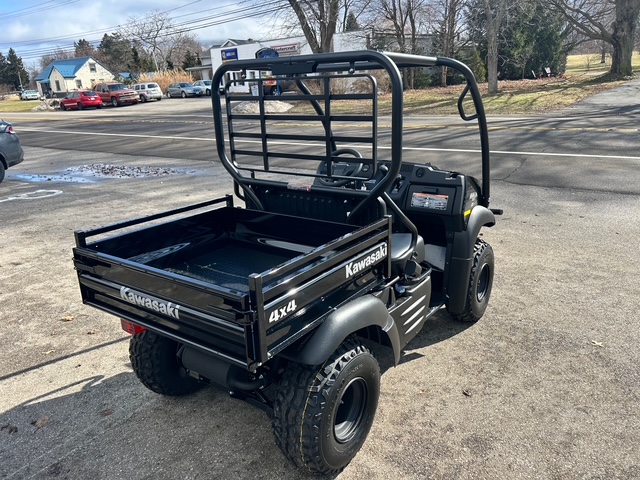

STEEL CARGO BED WITH TEXTURED FLOOR

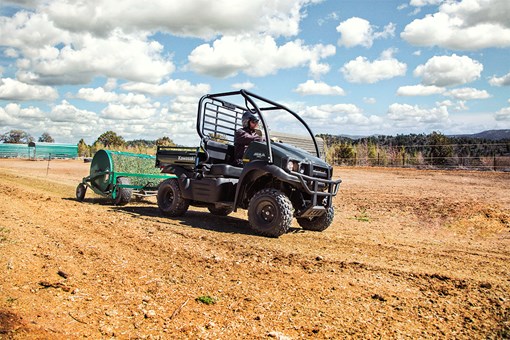

1,100-LB TOWING CAPACITY
KAWASAKI STRONG 3-YEAR LIMITED WARRANTY
ADDITIONAL VEHICLE FEATURES:

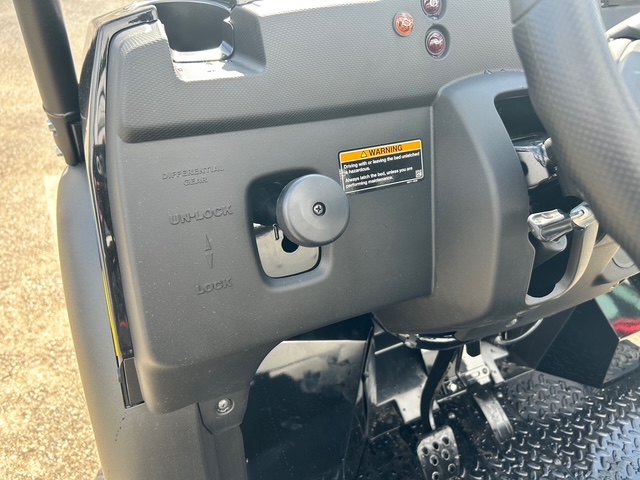

2WD/dual-mode rear differential with diff. lock
Continuously Variable Transmission (CVT) with (H,N,R)
22-in Duro tires
Halogen headlights
Engine4-stroke, single-cylinder, OHV, air-cooled
Displacement401cc
Maximum Horsepower12.3 hp @ 3,800 rpm
Maximum Torque20.6 lb-ft @ 2,200 rpm
Bore x Stroke82.0 x 76.0mm
Compression Ratio8.3:1
Fuel SystemNikki 6C1026 carburetor
TransmissionContinuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive2WD, shaft. Dual mode rear differential with differential lock
Engine BrakingNo
Alternator Output (max)17 amp
Front Suspension / Wheel TravelMacPherson Strut/3.1 in
Rear Suspension / Wheel TravelUnit Swingarm/3.1 in
Front Tires22 x 9-10
Rear Tires22 x 11-10
SteeringRack-and-pinion
Front BrakesDrum
Rear BrakesDrum
Park Brake TypeIndependent, mechanical drum
Ground Clearance6.1 in
Fuel Capacity4.2 gal
Turning Radius10.8 ft
Cargo Bed Dimensions (LxWxH)35.6 x 40.9 x 9.6 in
Cargo Bed Load Capacity399 lb
Payload Capacity926 lb

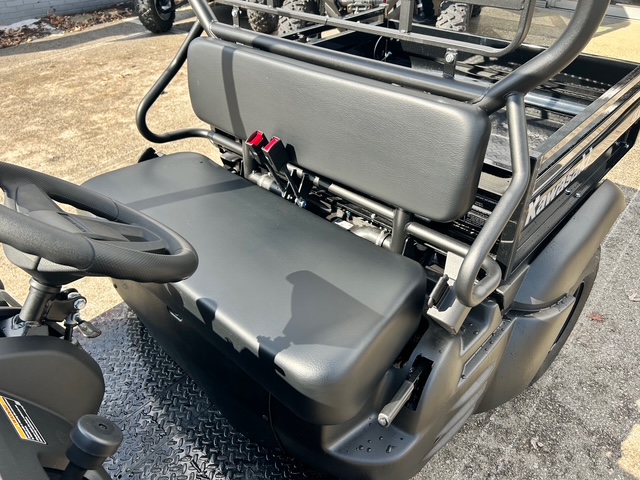

Seating Capacity2
Towing Capacity1,100 lb***
Lighting(2) Halogen headlights, tail/brake lights
Overall Length106.7 in
Overall Width52.6 in
Overall Height70.1 in
Estimated Dry Weight927.9 lb**
Curb Weight967.6 lb*
Wheelbase70.1 in

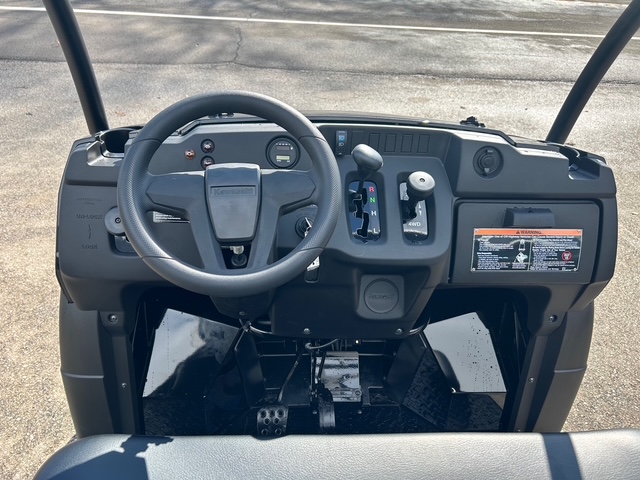

InstrumentsFuel gauge, hour meter, oil temp light, parking brake light
Color Choice Super Black
All units are plus tax, destination, and assembly/pdi (all units are shipped and do not come complete).
Additional warranty options are available from Kawasaki
KAWASAKI PROTECTION PLUS™ BENEFITS
When your Limited Warranty ends, KPP steps in to keep you covered with nearly all the benefits of your original warranty, extending your peace of mind for countless miles ahead.
Kawasaki will handle repairs or replacements of covered parts at no cost to you no deductibles involved. With prices today, the cost of parts alone could easily surpass the price of the entire contract. Plus, KPP is transferable, adding extra value to your Kawasaki if you sell your vehicle before the contract expires.
Destination
Covers the cost to transport the unit from the manufacturer to the dealership
Includes crating, shipping, fuel surcharges, and logistics handling
Assembly / PDI
Uncrating the unit
Professional assembly (specialty tools required)
Fluids, battery install, torque checks
Safety inspection and test run
This ensures your bike/ATV/SxS is safe, inspected, and warrantied correctly
Manufacturers require proper setup for the warranty to be valid
