Built from the ground up to be the ultimate sport side x sides, the Teryx KRX® 1000 lineup is not to be denied by tough trails. The game-changing Teryx KRX 1000 series inspires confidence with a terrain-taming combination of power, performance, and capability. Add in an unprecedented level of comfort and the build quality of Kawasaki side x sides, and you've got everything you need to push the limits for an adventure of a lifetime.
FEATURING:
Powerful, High Torque 999cc Parallel-Twin Engine

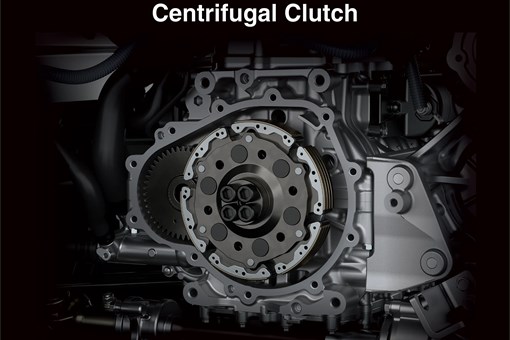

CONTINUOUSLY VARIABLE TRANSMISSION (CVT) WITH CENTRIFUGAL CLUTCH
ON-THE-FLY ELECTRICALLY SELECTABLE 2WD/4WD & FRONT DIFFERENTIAL LOCK AND ADJUSTABLE POWER MODE SELECTION
MASSIVE GROUND CLEARANCE AND LONG-TRAVEL SUSPENSION
Highly Rigid Frame with Integrated Roll-Over Protective Structure (ROPS)

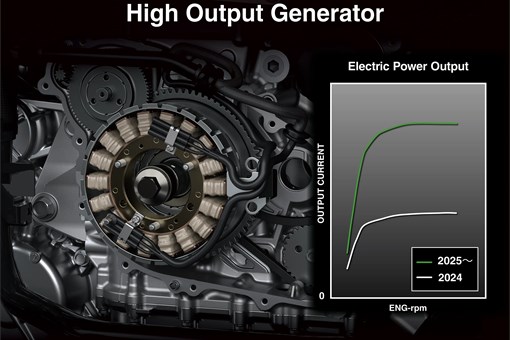

HIGH OUTPUT AC GENERATOR
OVER 50 KAWASAKI GENUINE ACCESSORIES (SOLD SEPARATELY)

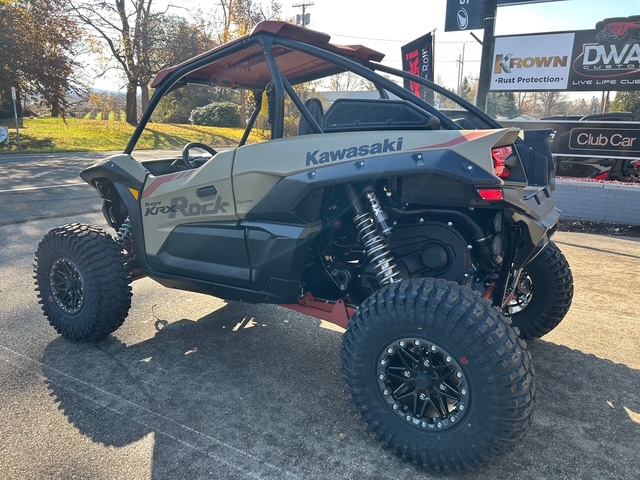

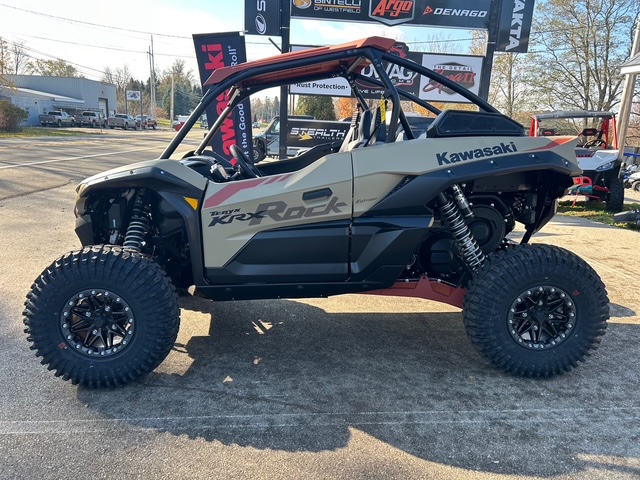

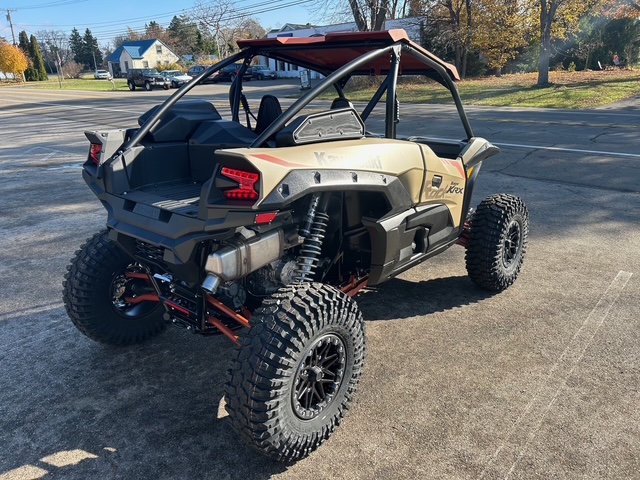

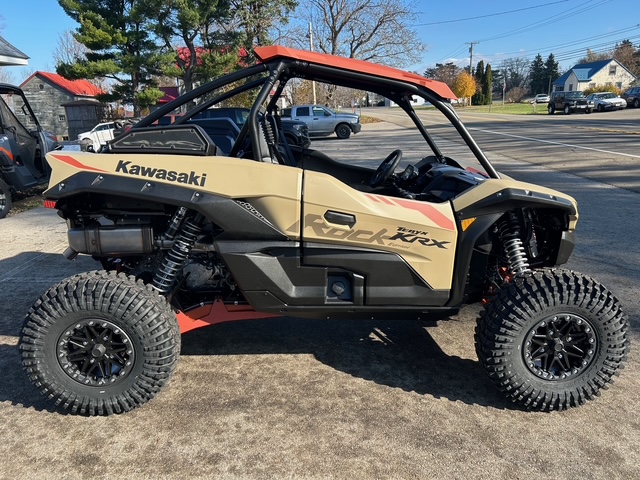

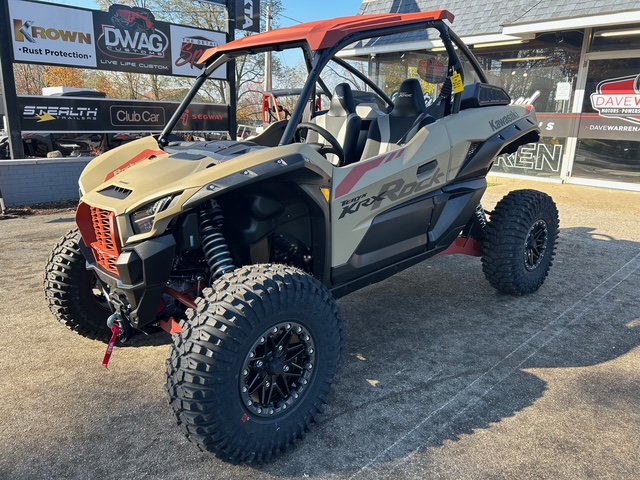

TERYX KRX® 1000 ROCK EDITION
ADDITIONAL VEHICLE FEATURES:

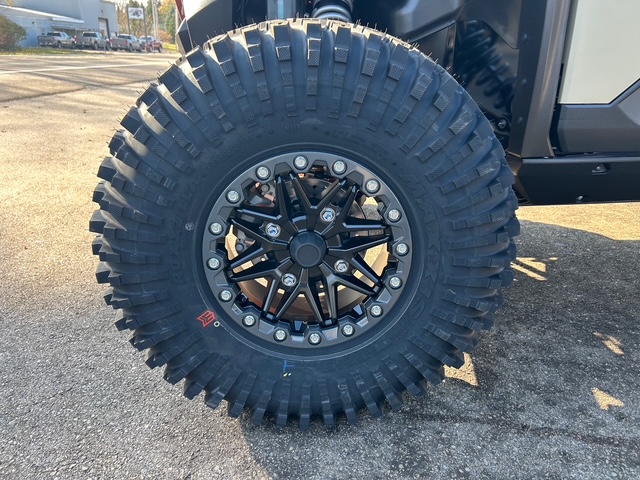

32-in Maxxis® Roxxzilla rock-crawling tires with 15-in bead-lock alloy wheels

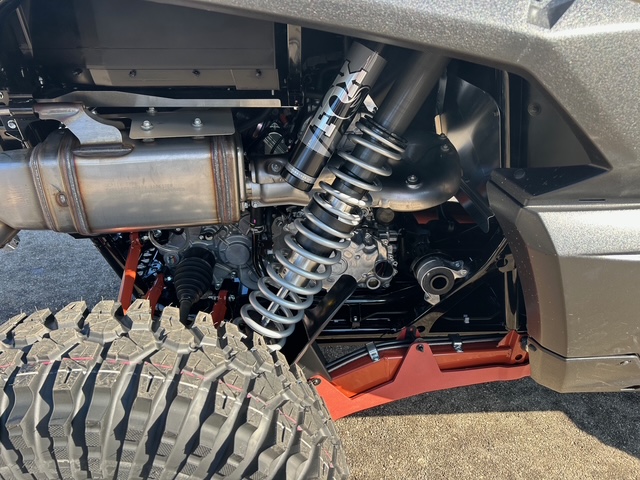

FOX 2.5 LSC Piggyback shocks with high suspension articulation for superior traction in technical terrain

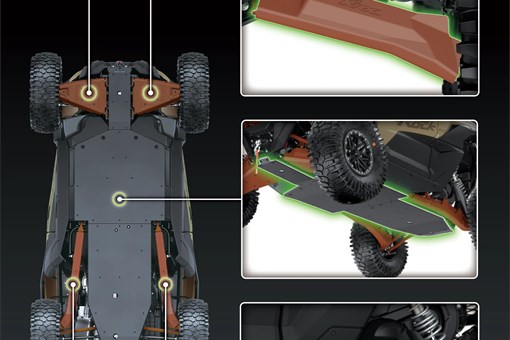

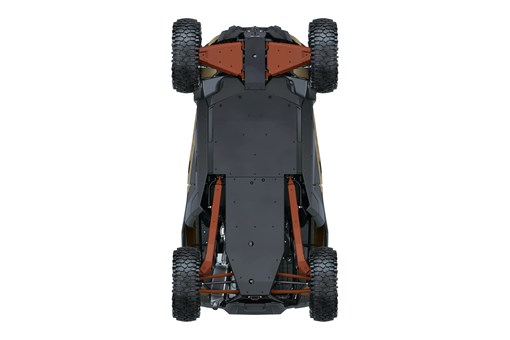

Low-profile HMW polyethylene skid plates, front A-arm guards, trailing arm guards

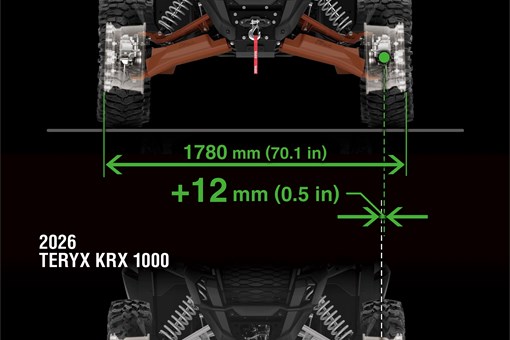

Broadened stance for increased lateral stability compared to standard Teryx KRX® 1000

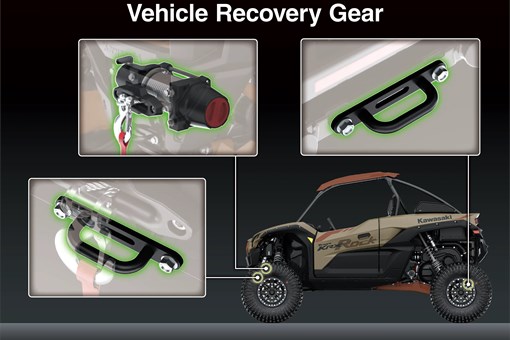

WARN® VRX 45-S powersport winch
Front/rear tow hooks

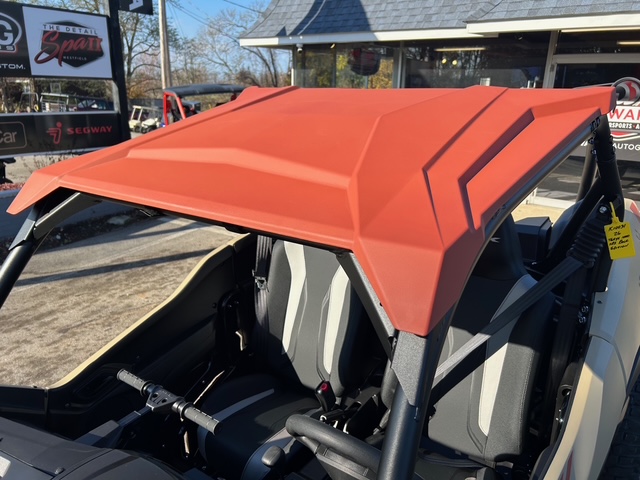

Color-matched KQR™ Sport Roof
Rock Edition color and graphics
Engine4-stroke, DOHC, 8-valve parallel-twin, liquid cooled
Displacement999cc
Maximum Horsepower110.0 hp @ 8,500 rpm
Maximum Torque75.2 lb-ft @ 7,000 rpm
Bore x Stroke92.0 x 75.1mm
Compression Ratio11.5:1
Fuel SystemDFI® with (2) 50mm throttle bodies
IgnitionTCBI with electronic advance
Starting SystemElectric

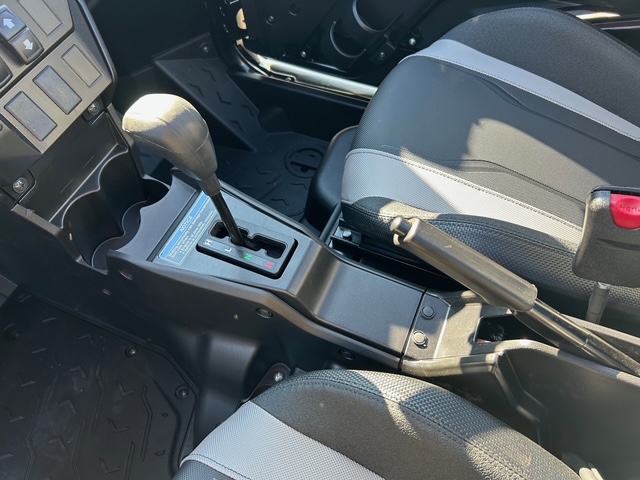

TransmissionAutomatic CVT with centrifugal clutch (H,L,N,R)
Final DriveSelectable 2WD/4WD with locking front differential, shaft
Engine BrakingYes

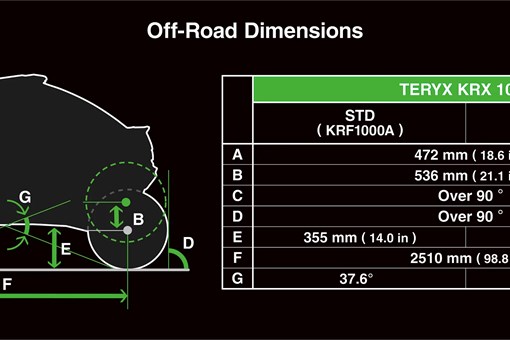

Front Suspension / Wheel TravelDouble wishbone, FOX 2.5 Podium LSC piggyback shocks, fully adjustable preload, and 24-position adjustable compression damping/18.6 in
Rear Suspension / Wheel Travel4-link trailing-arm rear suspension, FOX 2.5 Podium LSC piggyback shocks, fully adjustable preload, and 24-position adjustable compression damping/21.1 in
Front TiresMaxxis® Roxxzilla 32 x 10.00R15 8PR
Rear TiresMaxxis® Roxxzilla 32 x 10.00R15 8PR
SteeringElectric Power Steering (EPS) / rack-and-pinion
Front Brakes258mm dual hydraulic discs with 2-piston calipers
Rear Brakes258mm dual hydraulic discs with single-piston calipers
Ground Clearance14.6 in (max) / 14.2 in (std)
Fuel Capacity10.6 gal

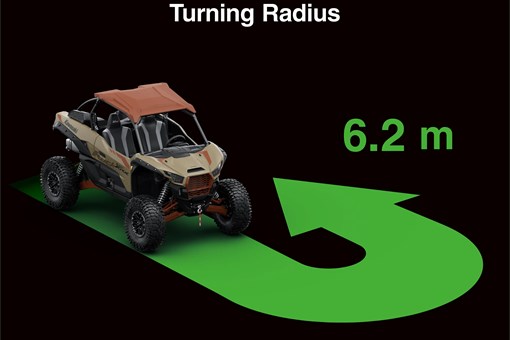

Turning Radius20.3 ft

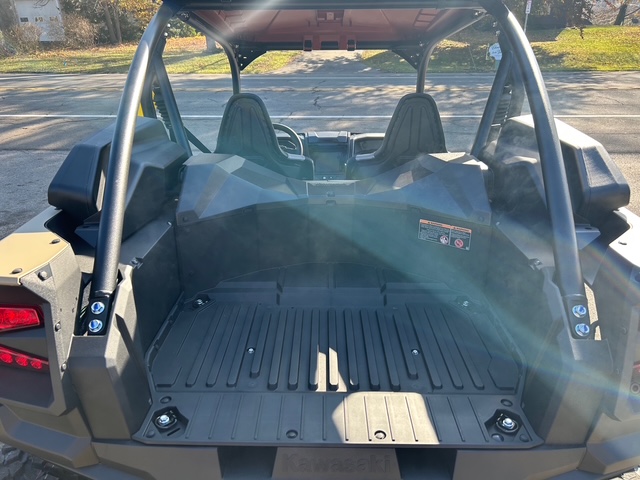

Cargo Bed Dimensions (LxWxH)14.6 x 33.1 x 9.1 in
Cargo Bed Load Capacity351 lb
Payload Capacity781 lb
Seating Capacity2
Towing CapacityN/A
Lighting(2) LED headlights, (2) LED taillights, LED stoplight
FrameLadder type, tubular steel
Overall Length133.3 in
Overall Width70.1 in
Overall Height77.8 in
Estimated Dry Weight1,953.6 lb** / 1,955.8 lb** CA Model
Curb Weight2,052.9 lb* / 2,055.1 lb* CA Model
Wheelbase98.8 in

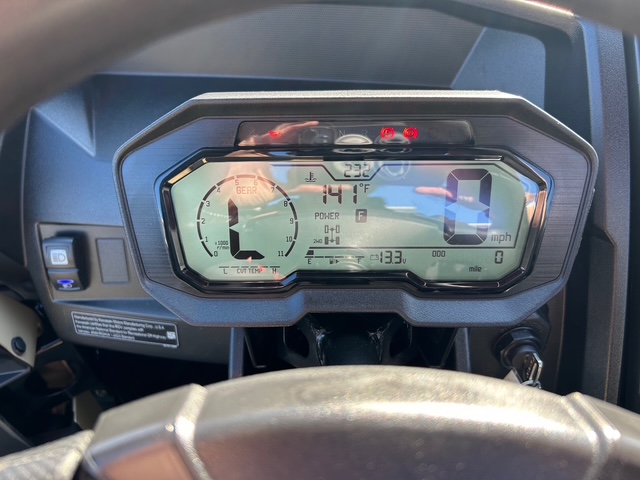

InstrumentsMulti-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CTV temperature, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, and CVT belt warning lamp
Wheel TypeAlloy with bead-lock wheels
Additional FeaturesKQR™ Sport Roof, F/R Tow Hooks, High Molecular Weight (HMW) polyethylene skid plates & front A-arm/trailing arm guards, WARN® VRX 45-S Powersport Winch
Color ChoicesMatte Dark Beige/Brownish Orange
All units are plus tax/title, freight and setup.
Additonal warranty coverages from KPP are available to a total of 7 years of coverage. Ask your sales associate for details.
