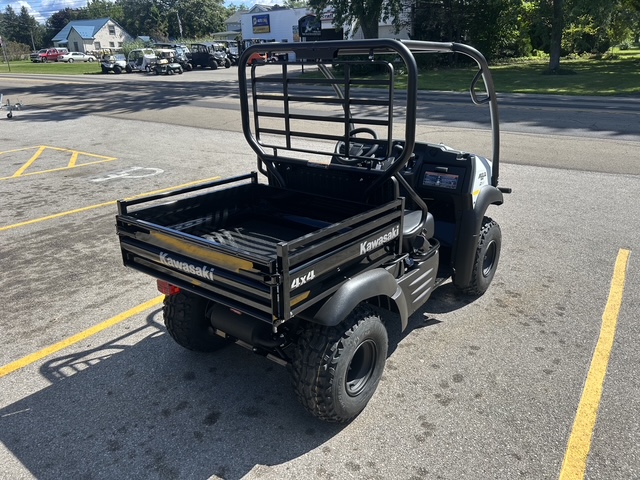

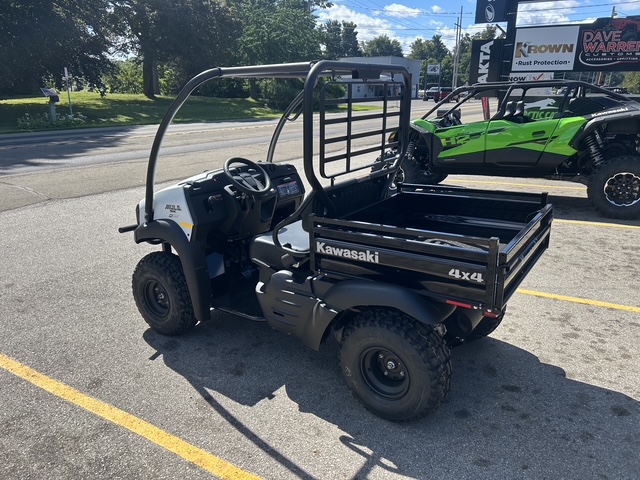

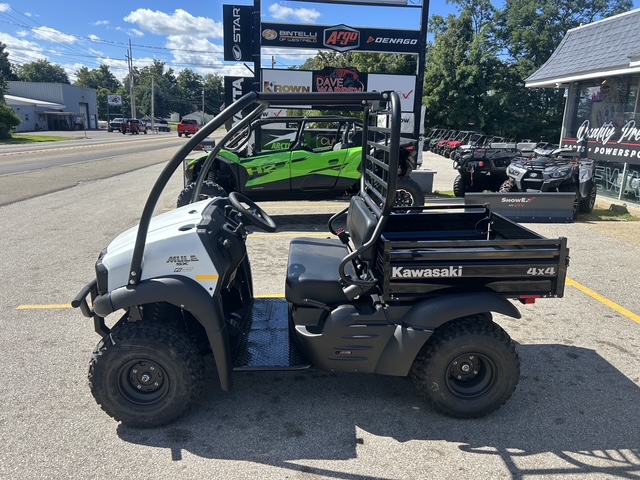

Styled in the image of its full-size MULE™ PRO siblings, the MULE SX™ family of utility vehicles packs plenty of stout muscle into compact and agile 2-passenger side x sides. Handle a wide variety of tasks with the ability to tread lightly and maneuver in tight areasand fit in the bed of a full-size pickup truck.
FEATURING:
401cc 4-STROKE ENGINE

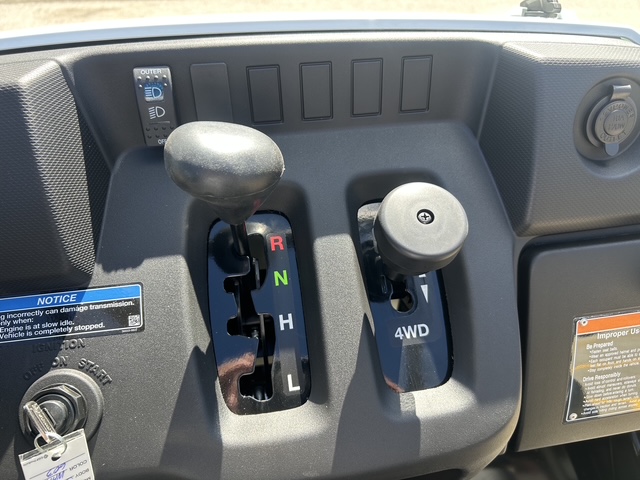

CONTINUOUSLY VARIABLE TRANSMISSION (CVT) WITH (H,L,N,R)
COMPACT SIZE AND TIGHT TURNING RADIUS
STEEL CARGO BED WITH TEXTURED FLOOR
1,100-LB TOWING CAPACITY
3-YEAR LIMITED FACTORY WARRANTY
ADDITIONAL VEHICLE FEATURES:

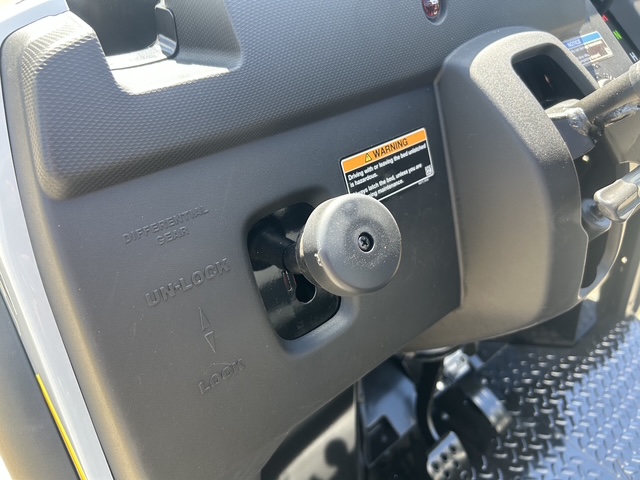

2WD/dual-mode rear differential with diff. lock

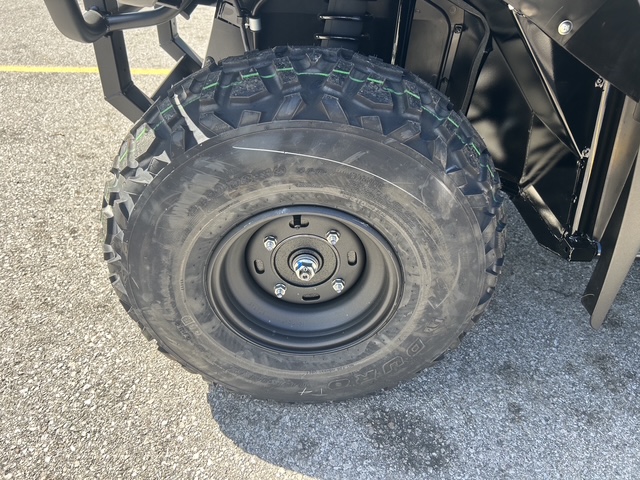

10-in wheels with 22-in Duro tires
Halogen headlights
Engine4-stroke, single-cylinder, OHV, air-cooled
Displacement401cc
Maximum Horsepower12.3 hp @ 3,800 rpm
Maximum Torque20.6 lb-ft @ 2,200 rpm
Bore x Stroke82.0 x 76.0mm
Compression Ratio8.3:1
Fuel SystemNikki 6C1026 carburetor
TransmissionContinuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive2WD, shaft. Dual mode rear differential with differential lock
Engine BrakingNo
Alternator Output (max)17 amp
Front Suspension / Wheel TravelMacPherson Strut/3.1 in
Rear Suspension / Wheel TravelUnit Swingarm/3.1 in
Front Tires22 x 9-10
Rear Tires22 x 11-10

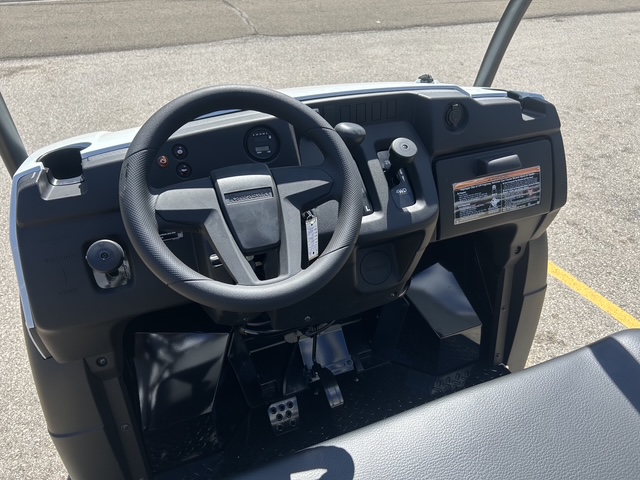

SteeringRack-and-pinion
Front BrakesDrum
Rear BrakesDrum
Park Brake TypeIndependent, mechanical drum
Ground Clearance6.1 in
Fuel Capacity4.2 gal
Turning Radius10.8 ft

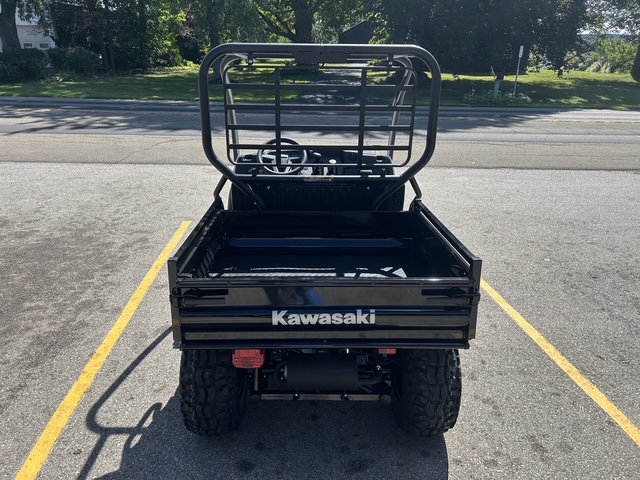

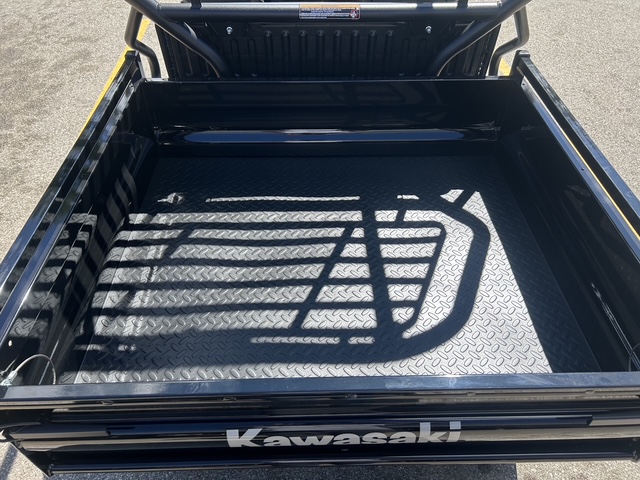

Cargo Bed Dimensions (LxWxH)35.6 x 40.9 x 9.6 in
Cargo Bed Load Capacity399 lb
Payload Capacity926 lb
Seating Capacity2
Towing Capacity1,100 lb***
Lighting(2) Halogen headlights, tail/brake lights
Overall Length106.7 in
Overall Width52.6 in
Overall Height70.1 in
Estimated Dry Weight927.9 lb**
Curb Weight967.6 lb*
Wheelbase70.1 in

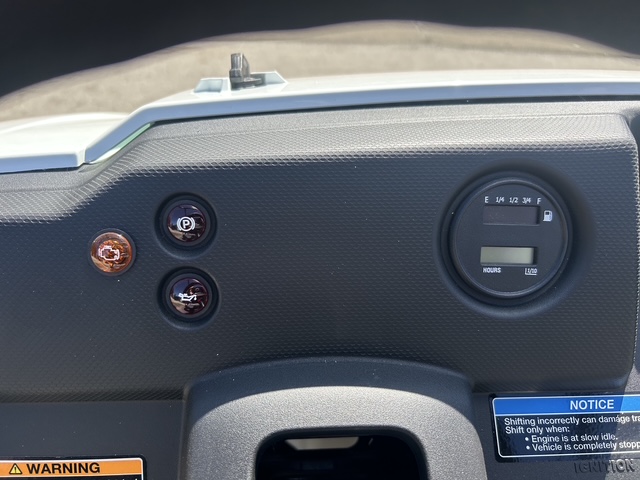

InstrumentsFuel gauge, hour meter, oil temp light, parking brake light
