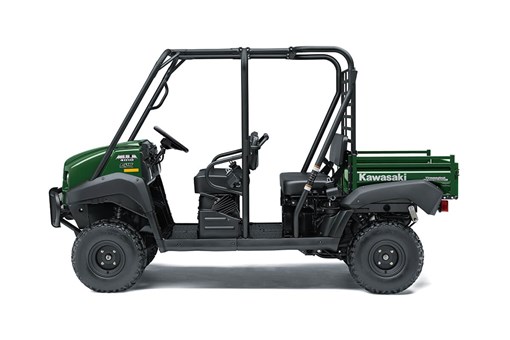

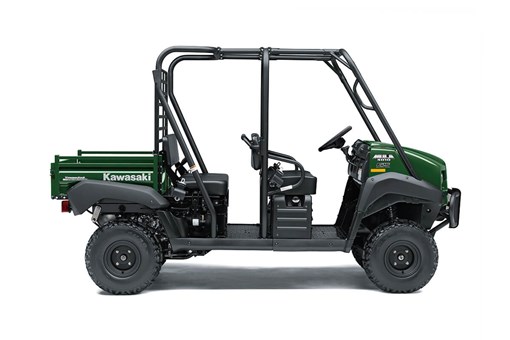

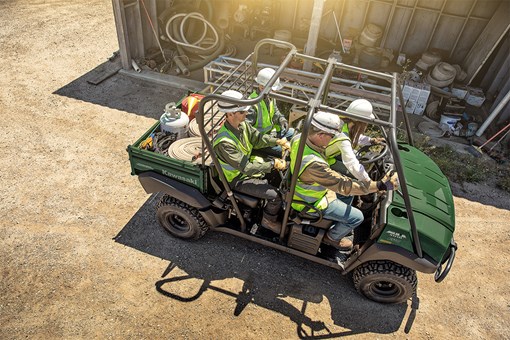

The MULE 4000 Trans™ and MULE™ 4010 Trans4x4® side x sides are versatile, mid-size, 2- to 4-passenger machines that are capable of putting in a hard day of work as well as touring around the property. With the Trans Cab™ system, you get enough room for materials or your entire crew.
FEATURING:
617cc, V-TWIN, 4-STROKE ENGINE
2- TO 4-PASSENGER TRANS CAB™ SYSTEM
1,200-LB TOWING CAPACITY
STEEL CARGO BED WITH 800-LB CAPACITY
KAWASAKI STRONG 3-YEAR LIMITED WARRANTY
ADDITIONAL VEHICLE FEATURES:
Selectable 2WD/4WD/dual-mode rear differential with diff. lock
Electric Power Steering (EPS)
Continuously Variable Transmission (CVT) with (H,L,N,R)
Steel front bumper and steel cargo bed
Engine4-stroke, 2-cylinder, OHV, 90 V-twin, Liquid-cooled
Displacement617cc
Maximum Horsepower20.0 hp @ 3,600 rpm
Maximum Torque34.7 lb-ft @ 2,500 rpm
Bore x Stroke76.0 x 68.0mm
Compression Ratio10:3:1
Fuel SystemDFI® with 34mm Mikuni throttle body
TransmissionContinuously Variable Transmission (CVT) with (H,L,N,R)
Final DriveSelectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Engine BrakingNo
Alternator Output (max)23 amp
Front Suspension / Wheel TravelMacPherson Strut/3.9 in
Rear Suspension / Wheel TravelDeDion Axle/2.8 in
Front Tires23 x 11-10
Rear Tires23 x 11-10
SteeringRack-and-pinion w/ Electric Power Steering (EPS)
Front BrakesDrum
Rear BrakesDrum
Park Brake TypeIndependent, mechanical drum
Ground Clearance7.1 in
Fuel Capacity6.3 gal
Turning Radius12.8 ft
Cargo Bed Dimensions (LxWxH)50.4 x 47.6 x 11.2 in (2-person) / 30.3 x 47.6 x 11.2 in (4-person)
Cargo Bed Load Capacity800 lb (2-person) / 401 lb (4-person)
Payload Capacity1,330 lb
Seating Capacity2-4
Towing Capacity1,200 lb
Lighting(2) Halogen headlights, (2) tail/brake lights
Overall Length128.5 in
Overall Width58.5 in
Overall Height75.8 in
Estimated Dry Weight1,521.5 lb**
Curb Weight1,587.6 lb*
Wheelbase85.2 in
InstrumentsParking brake warning light, coolant temperature warning light, 12V DC outlet, fuel gauge, hour meter
Color ChoicesTimberline Green
All units are plus tax/title, destination and build
Additional warranty coverages are available from Kawasaki
