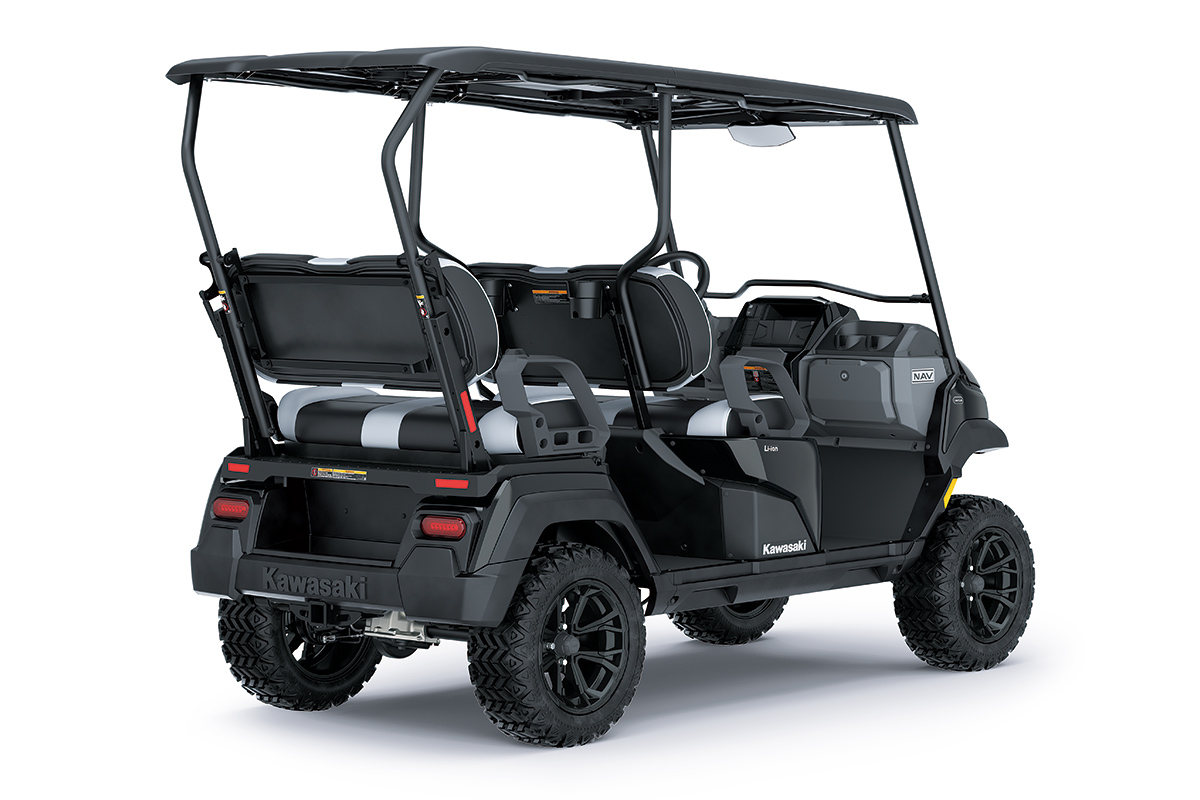

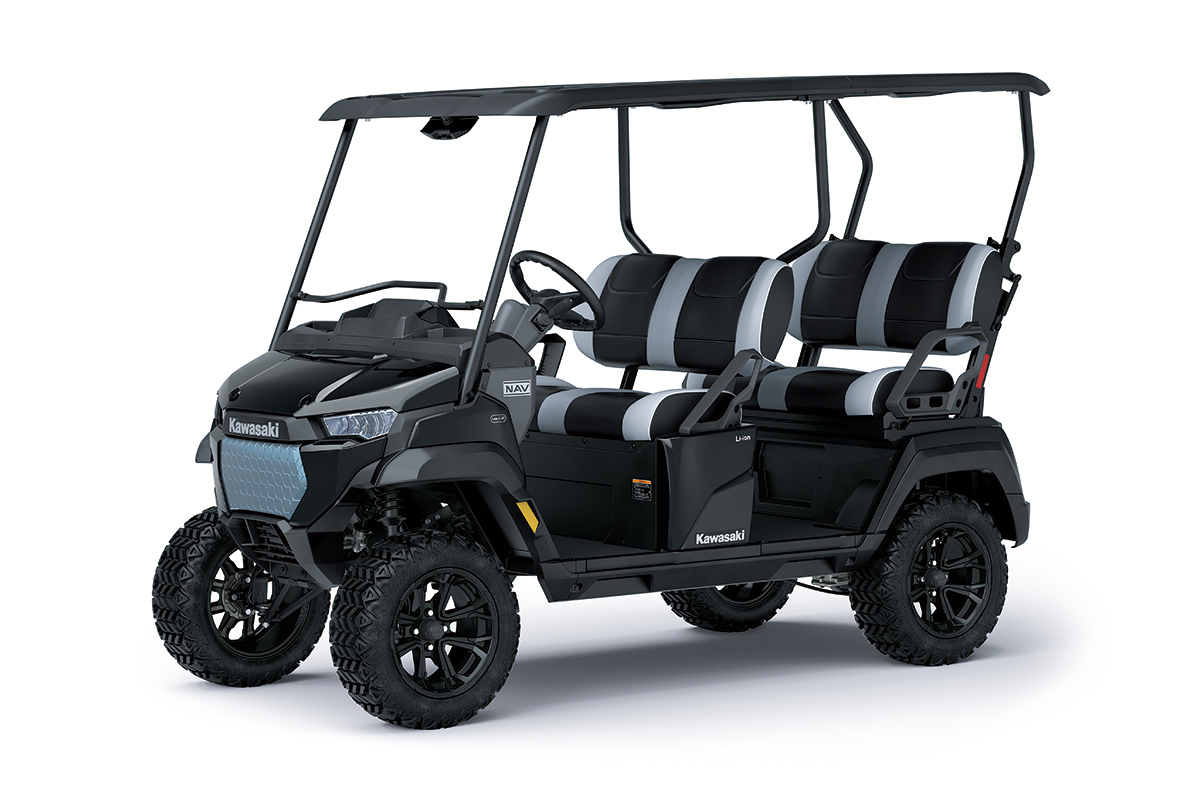

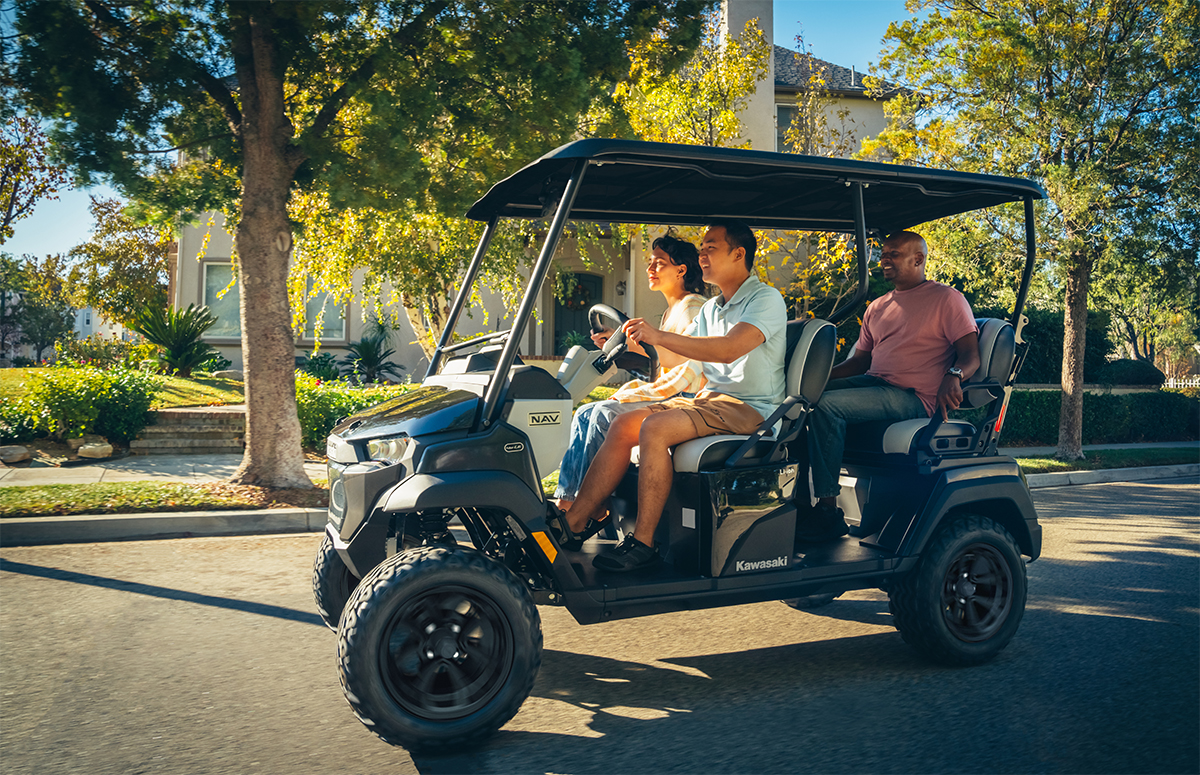

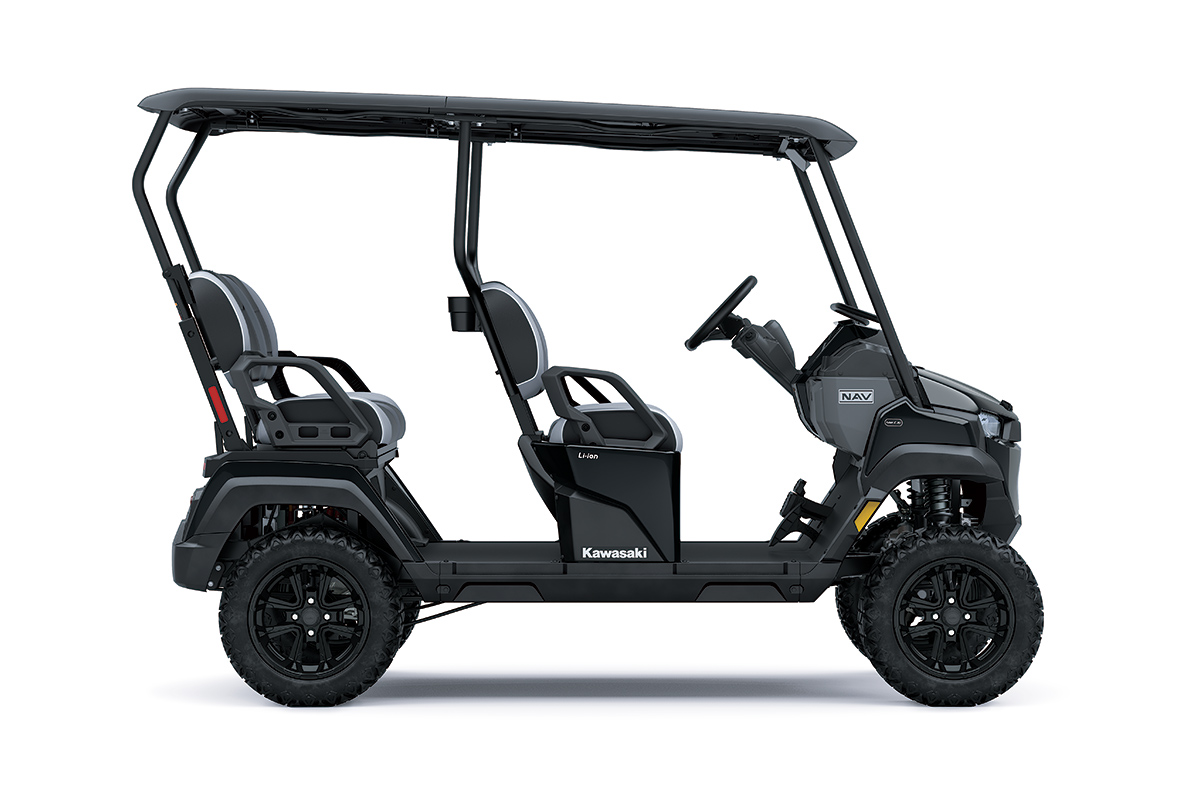

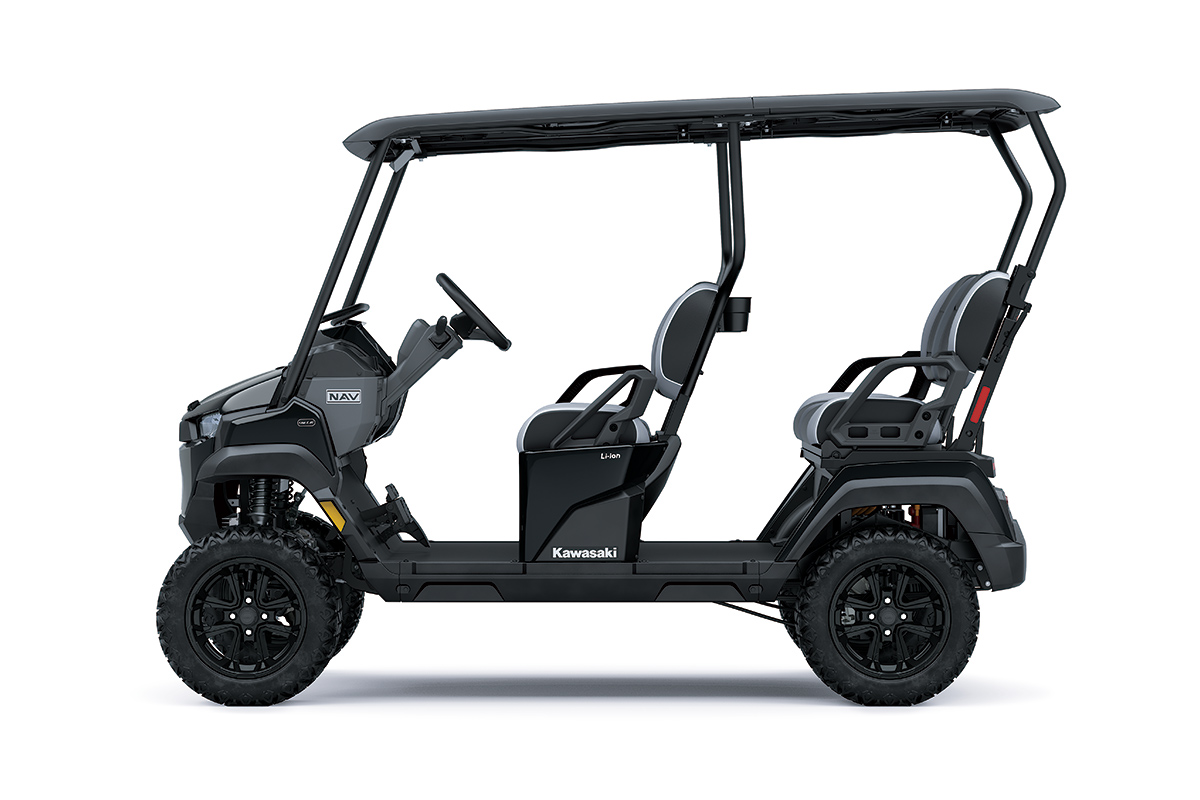

Meet the NAV®: our first-ever Personal Transportation Vehicle (PTV) designed for cruising the good life. With premium, sporty design and comfort for the whole family, the NAV isn't just another ride. It's a game changer for the PTV market. Thoughtfully equipped with a category-first fold-flat seat, expandable front and rear storage, cupholders, USB ports, and all-LED lighting, the NAV is as functional as it is fun. So, you can cruise from the pool to the BBQ to the pickleball courtsand beyond.
FEATURING:
PREMIUM LIFTED STYLING WITH RAISED FRONT FENDERS
14-IN WHEELS AND 23-IN OFF-ROAD STYLE TIRES
ROOMY INTERIOR WITH ELEGANT & COMFORTABLE SEATS

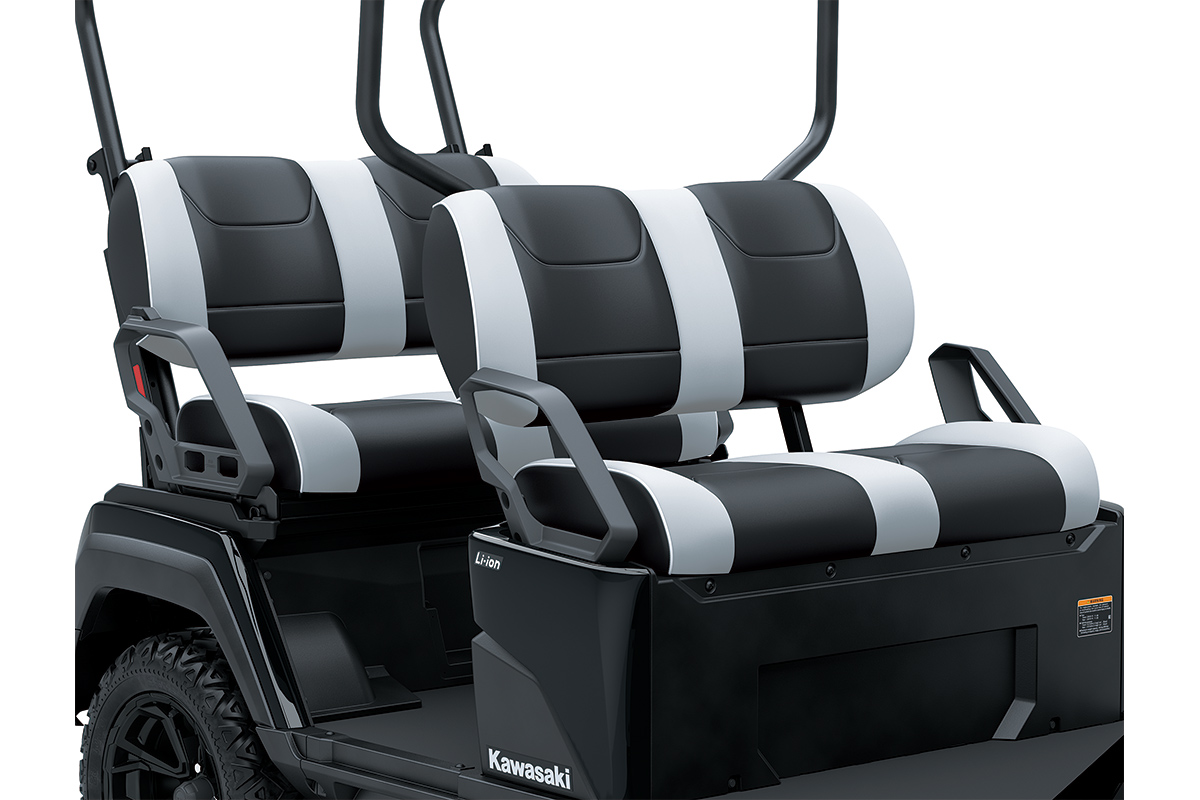

FIRST IN CATEGORY* FOLD-FLAT SEAT IN REAR

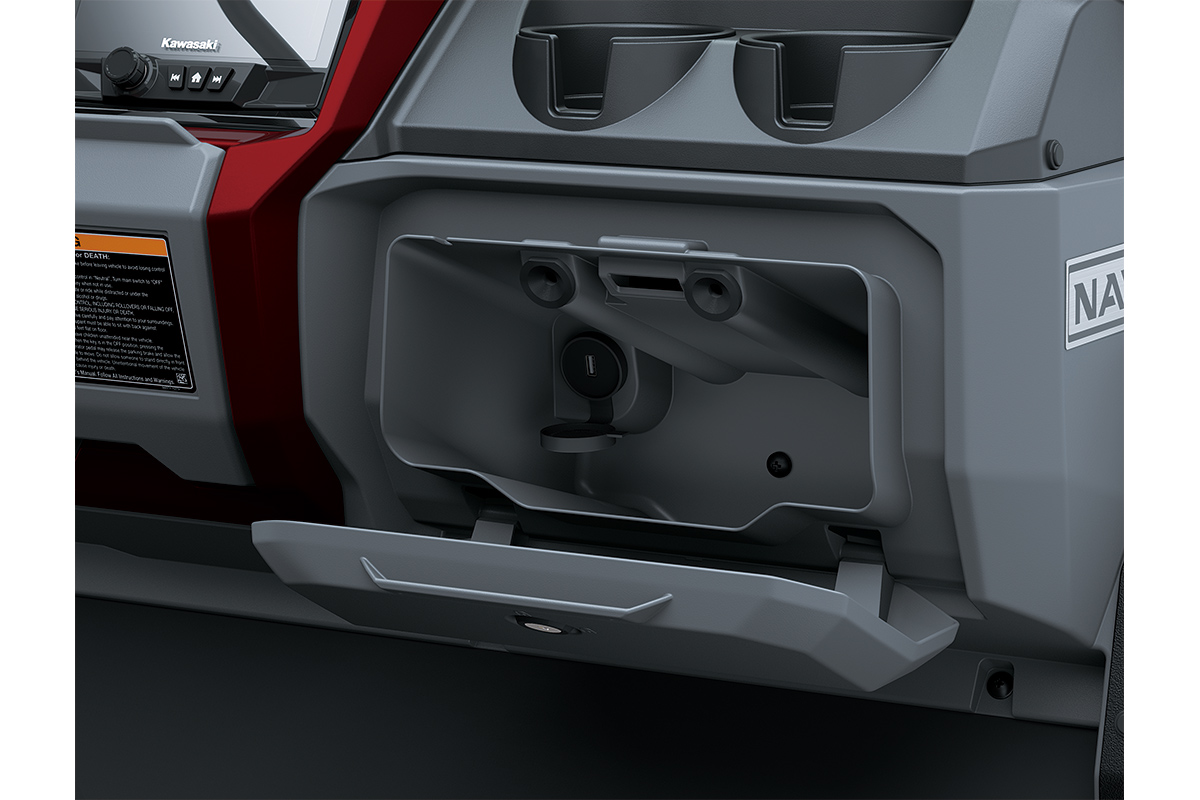

FUNCTIONAL AND SPACIOUS FRONT & REAR STORAGE
ALL-LED LIGHTING WITH UNIQUE KAWASAKI FRONT-END DESIGN
SMOOTH AIR-COOLED INDUCTION MOTOR
RUGGED CHASSIS DESIGN WITH STRONG STEEL LADDER FRAME
PREMIUM 3D KAWASAKI EMBLEM
ADDITIONAL VEHICLE FEATURES:
Lithium-ion battery
POWER
POWER
Motor TypeAir-cooled induction motor
Rated Power4.0 kW @ 5,200 rpm
Maximum Power10.7 kW @ 2,000 rpm
Maximum Torque37.6 lb-ft @ 2,000 rpm
Maximum Speed19 mph
Battery TypeLithium-ion battery (x2)
Battery Voltage/Capacity51.7 V (x2)
Battery Range (est.)Up to 40 miles
Battery Charge TimeApprox. 11 hours (0-100%)
Transmission TypePrimary reduction gear with Forward/Neutral/Reverse
Final Drive2WD
Regenerative SystemYes
CAPABILITY
CAPABILITY

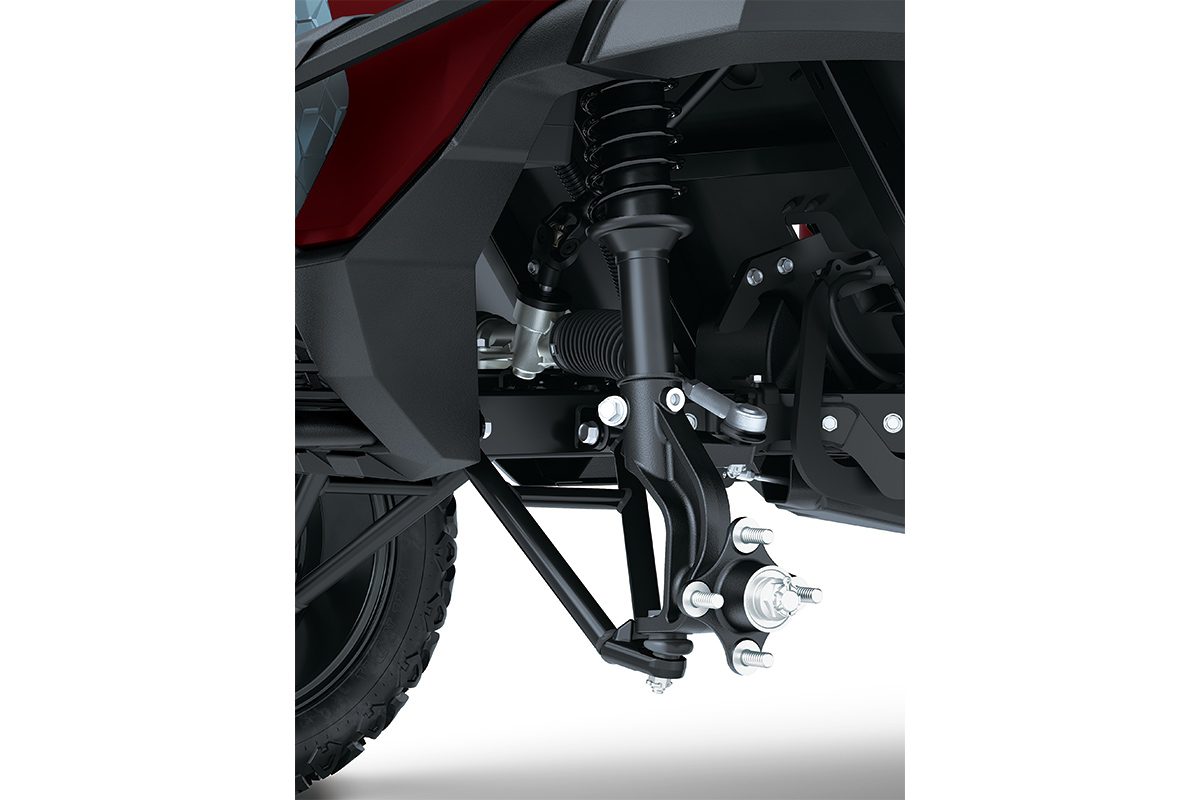

Front SuspensionMacPherson strut
Rear SuspensionLeaf springs with hydraulic shock absorbers
Front Tires23 x 10-14
Rear Tires23 x 10-14
Wheel Type14" aluminum
SteeringRack-and-pinion
Front BrakesN/A
Rear Brakes160mm drum
Ground Clearance7.3 in
Turning Radius12.8 ft
Cargo Bed Dimensions (LxWxH)31.0 x 40.3 x 0.9 in
Cargo Bed Load Capacity150 lb
Payload Capacity800 lb
Seating Capacity4-person (2 row)
Towing Capacity500 lb
LightingAll-LED lighting
DETAILS
DETAILS
FrameLadder type, tubular steel
Overall Length114.6 in
Overall Width51.6 in
Overall Height77.6 in
Estimated Dry Weight1,005.5 lb**
Curb Weight1,005.5 lb*
Wheelbase79.9 in

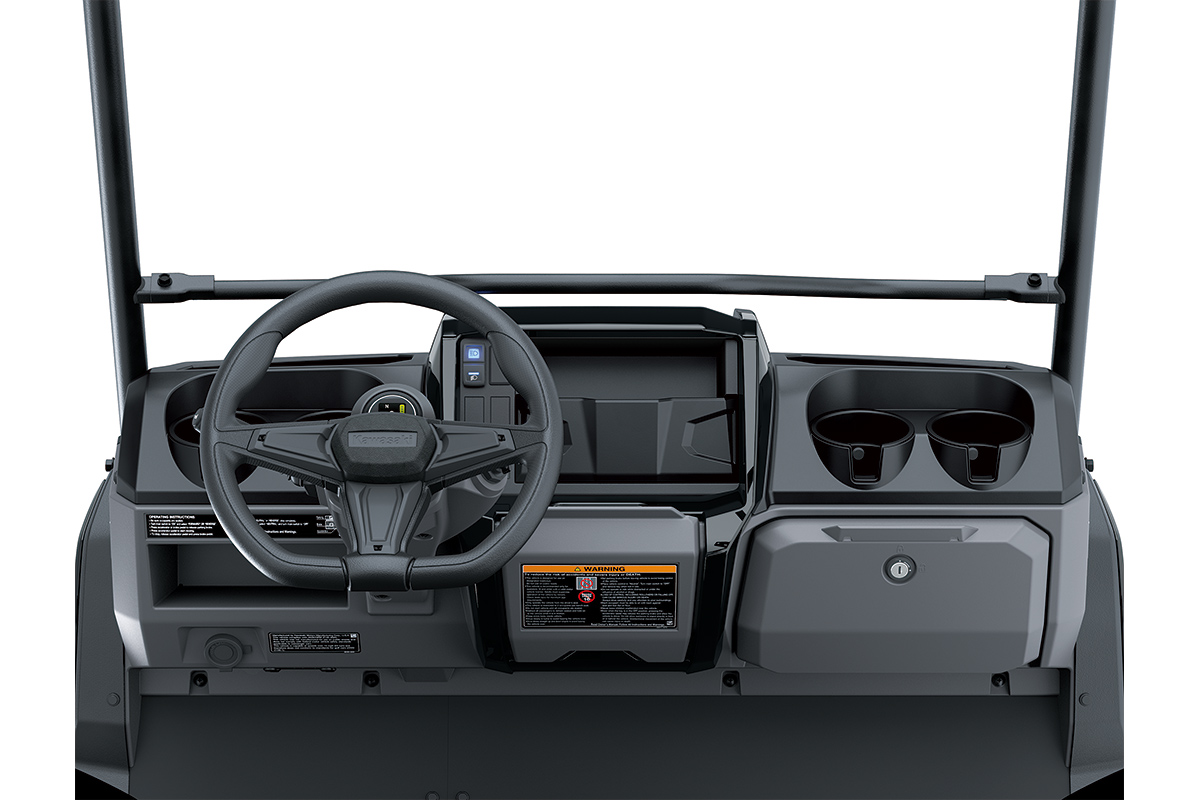

InstrumentsForward/reverse/neutral indicator, hour meter, battery pack charge level, and turn signal indicator

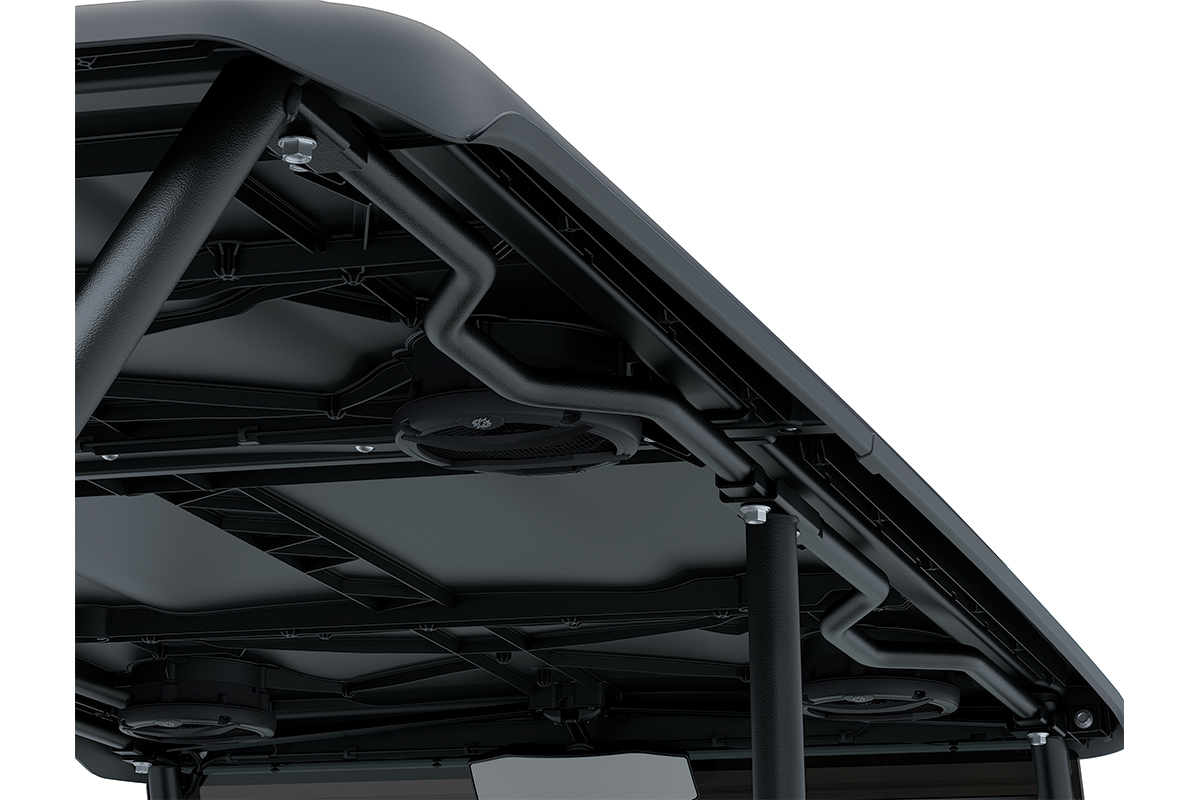

Additional FeaturesRoof, Full-color TFT Instrumentation, 6 cup holders, 4 USB ports, Fold-Flat rear seat, Rubber floor mats, KQR™ system compatible
Color ChoicesSuper Black
