Engine & Drivetrain
CoolingLiquid
Cylinders Displacement999cc
Drive System TypeHigh Performance True On-Demand AWD/2WD
Engine Braking System (EBS)Yes
Engine Type4-Stroke DOHC Twin Cylinder
Fuel System/BatteryElectronic Fuel Injection
Horsepower100 HP
Transmission/Final DriveAutomatic PVT P/R/N/L/H
Dimensions
Bed Box Dimensions (L x W x H)20.7 x 37 x 7.9 in (52.5 x 94 x 20 cm)
Box Capacity300 lb (136 kg)
Estimated Dry Weight1,323 lb (600 kg)
Fuel Capacity9.5 gal (35.9 L)
Ground Clearance12.5 in (31.8 cm)
Hitch Towing Rating1,500 lb (680 kg)
Overall Vehicle Size (L x W x H)110.9 x 60 x 69.3" (282 x 152.4 x 176 cm)
Payload Capacity740 lb (336 kg)
Wheelbase79 in (200.7 cm)
Brakes
Front/Rear Brakes4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking BrakePark In-Transmission
Technology

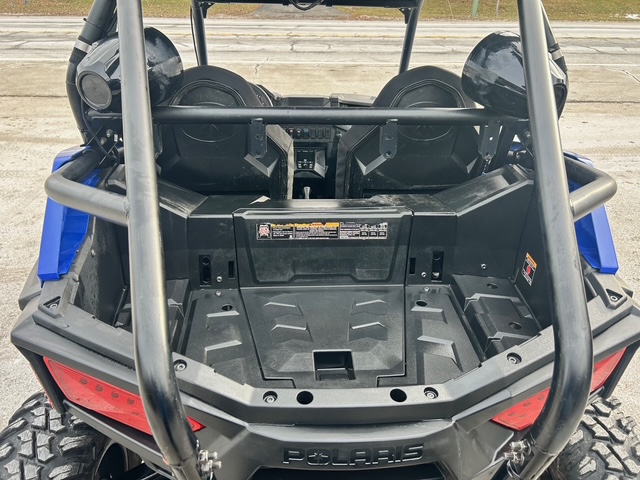

Cargo SystemLock & Ride®
DoorsFull Door
Electronic Power SteeringYes
Hitch TypeStandard 1.25 in (3.2 cm) Receiver

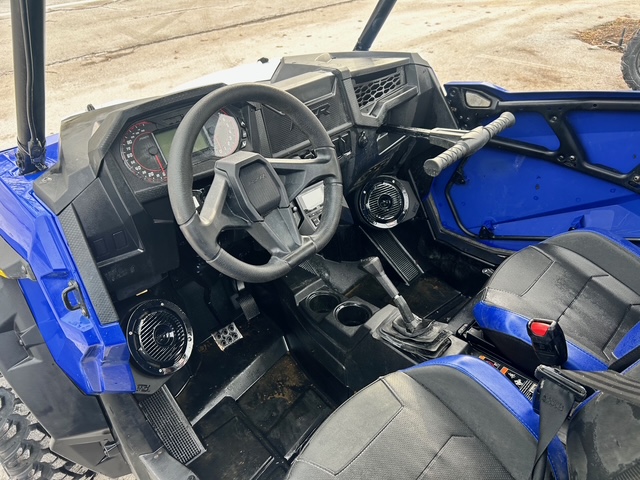

InstrumentationDual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet + 12V Power Plug
LightingFront Blacked Out Signature White LED Low/High with Accent Lights & Red LED Tail / Brake Lights
Other Standard FeaturesAdjustable Tilt Steering, Polaris P.A.S.S

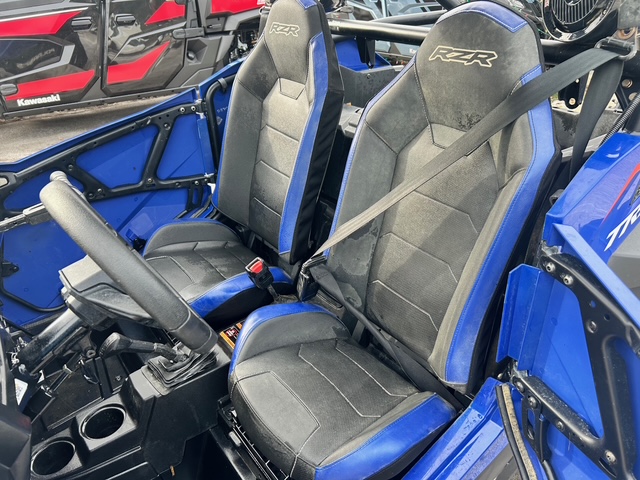

Seat TypeBolstered Bucket Seats with Toolless Driver Seat Slider and Standard Passenger Seat Slider (Tool Required for Adjustment on Passenger Seat)
Wheels & Tires

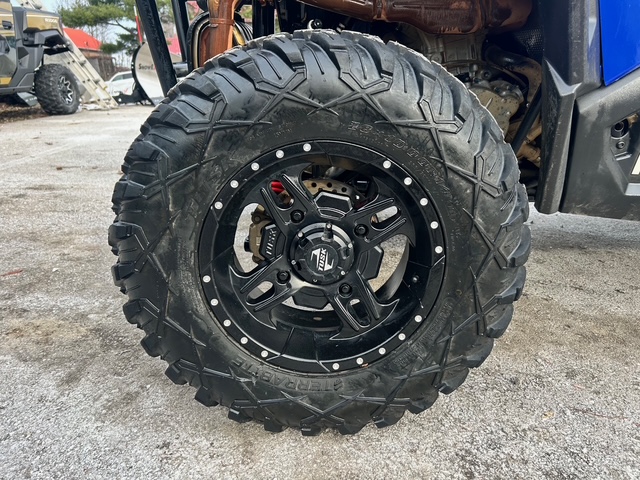

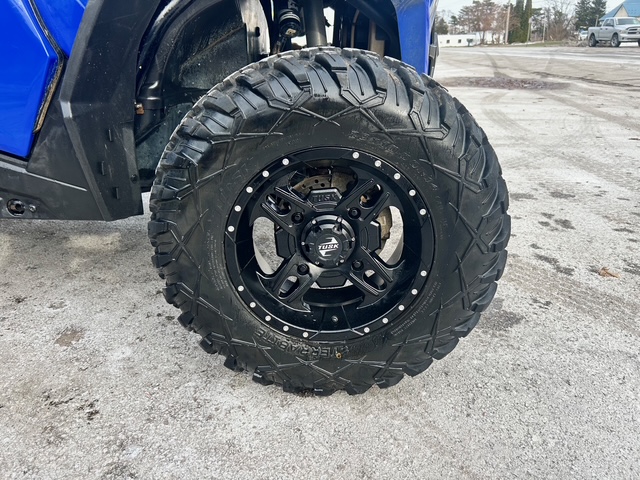

Front Tires27 x 9-12; Trailmaster A/T
Rear Tires27 x 11-12; Trailmaster A/T
WheelsCast Aluminum
Suspension
Electronic Suspension Control SystemN/A
Front ShocksFOX - 2.0 Podium X (External Reservoir Shock With 24 Adjustable Clicker Positions)
Front SuspensionDual A-Arm with Stabilizer Bar and 12.25 in (31.1 cm) Wheel Travel
Rear ShocksFOX - 2.0 Podium X (External Reservoir Shock With 24 Adjustable Clicker Positions)
Rear SuspensionDual A-Arm with Stabilizer Bar and 13.2 in (33.5 cm) Wheel Travel
Turning Radius16.36'
