Engine and transmission
Displacement1688.0 ccm (103.00 cubic inches)
Engine typeV2, four-stroke

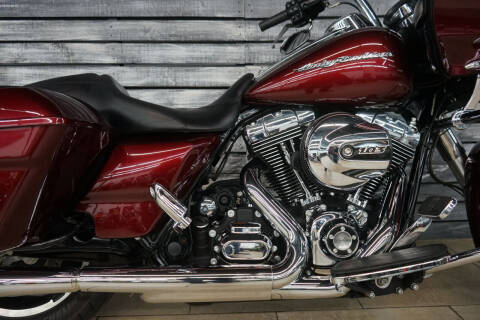

Engine detailsTwin Cam 103™ with Integrated Oil-Cooler
Power85.8 HP (62.6 kW)) @ 5000 RPM
Torque138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3250 RPM
Compression9.7:1
Bore x stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Fuel systemInjection. ESPFI
Lubrication systemDry sump
Cooling systemOil & air
Gearbox6-speed
Transmission typeBelt (final drive)
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Fuel consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

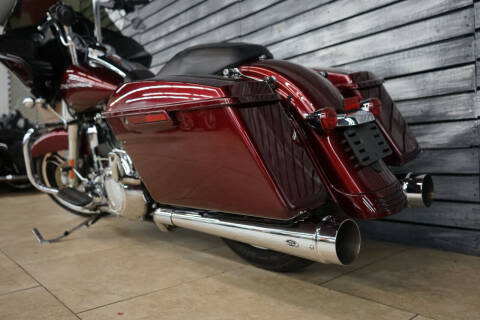

Exhaust systemChrome, 2-1-2 dual exhaust with tapered mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle)26.0
Trail173 mm (6.8 inches)

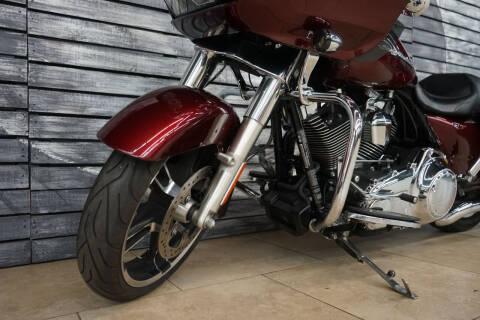

Front tire130/70-BW18
Rear tire180/65-BW16
Front brakesDouble disc. Optional ABS. 4-piston
Rear brakesSingle disc. Optional ABS. 2-piston
WheelsEnforcer Cast Aluminum
Physical measures and capacities
Dry weight369.0 kg (813.5 pounds)
Weight incl. oil, gas, etc385.0 kg (848.8 pounds)
Power/weight ratio0.2326 HP/kg
Seat height696 mm (27.4 inches) If adjustable, lowest setting.
Overall length2428 mm (95.6 inches)
Ground clearance135 mm (5.3 inches)
Wheelbase1625 mm (64.0 inches)
Fuel capacity22.71 litres (6.00 US gallons)
Oil capacity3.80 litres (4.02 US quarts)
Other specifications
Color optionsBlack Denim, Amber Whiskey, Vivid Black, Mysterious Red Sunglo
StarterElectric

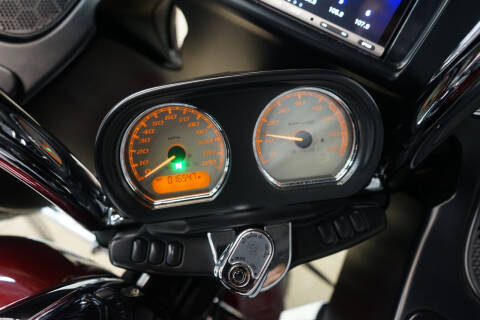

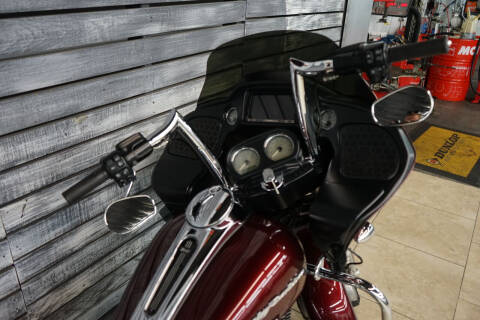

InstrumentsFairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
LightHigh beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control (optional), ABS (optional)

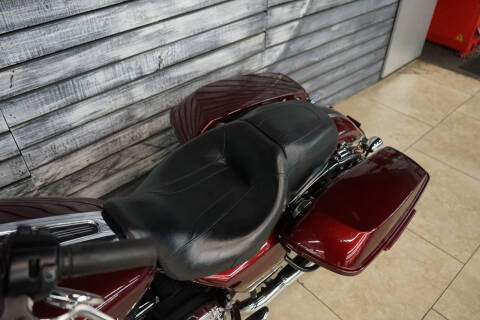

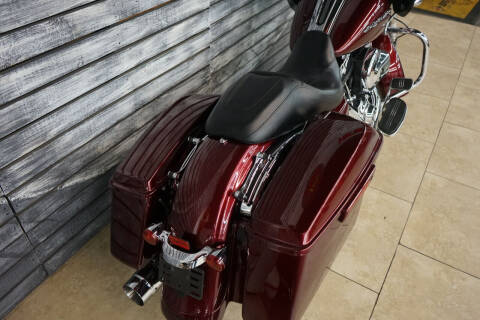

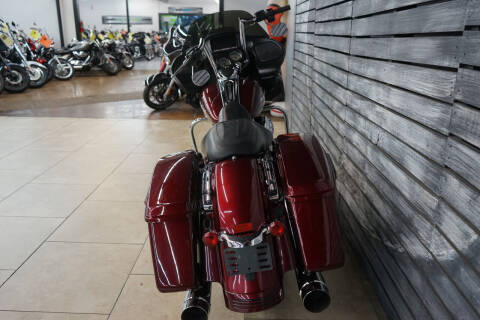

Carrying capacitySaddle bags
CommentsSmall windshield. Cruse control.
