Engine
Type:649.6 / 976cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve/cylinder)
Bore x stroke:82 x 62 mm / 91 x 75 mm
Fuel system:FI, 2 Siemens VDO injectors, 46mm throttle body
Starting system:Electric
Drivetrain
Drive system:Shaft, selectable 2WD/4WD with Visco-Lok QE auto-front differential
Transmission:CVT, subtransmission with high/low range, neutral, reverse with an extra low L-gear, standard engine-braking
Suspension (Type/Travel)
Front:Double A-arm/9 in.
Rear:Double Torsional Trailing Arm Independent/9.3 in.
Tires
Front:26x8-12 Carlisle ACT Radial
Rear:26x10-12 Carlisle ACT Radial
Brakes
Front:Dual 214mm ventilated discs with hydraulic twin-piston calipers
Rear:Single 214mm ventilated disc with hydraulic twin-piston caliper
Dimensions
Wheelbase:82 in.
Claimed dry weight:1135 lbs.
Ground clearance:11 in.
Seat height:34.5 in.
Length/width/height:122.8/48.8/49.5 in.
Fuel capacity:5.4 gal.
Load Capacity
Towing capacity:1,650 lbs.
Rack capacity, front:100 lbs.
Electrical
Lighting:230-watt from twin 60-watt projectors and dual 55-watt reflectors with taillight/brake light

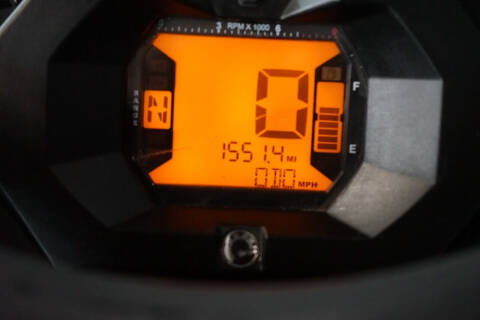

Instrumentation:Speedometer, tachometer (bar graph rpm, bottom bar numerical rpm), odometer, tripmeter, hourmeter, diagnostic center, gear position, engine hourmeter, 4x4 indicator, temperature and engine lights, fuel gauge, clock, auto shut-off after 15 minutes
Colors:Grey, Yellow
